Greenline 48 Fly

Fly

3 cabins, one of the largest flybridges in class, fuel consumption under 10 liters at 6 kts.

Request Information View Available Inventory

Specifications

Full Technical Details

Length Overall	15.97 m / 52'4"
Beam	4.80 m / 15'8"
Draft	0.95 m / 3'1"
Air Draft	5.32 m / 17'2"
Displacement	13,500 kg / 29,700 lbs
Hull Type	Super Displacement
Hull Material	GRP Vacuum Infused
CE Category	B
Cabins	2 or 3 + optional skipper
Heads	2 (or 3 + optional skipper)
Berths	4 or 6 + 2 salon
Fuel Capacity	1,500 l / 396 gal
Water Capacity	660 l / 159 gal
Holding Tank	2x 80 l / 2x 21 gal
Cruise Speed	7 kts (hybrid electric)
Max Speed	24 kts (2x370 hp) / 28 kts (2x440 hp) / 30 kts (IPS 600)
Electric Range	Up to 20 nm at 4.5 kts
Battery Capacity	4x 11 kWh@56V (H-Drive)
Solar Output	0.56 kW standard + 1.2 kW T-top option

Overview

Greenline 48 Fly

Launched in 2015, the Greenline 48 Fly features one of the largest flybridges in its class, 3 cabins and 3 heads en-suite plus optional skipper cabin, T-top with additional 1.2 kW solar standard, foldable radar mast, and an extra large utility room in the salon floor for freezer and washer/dryer that also separates the engine room from the cabins — a unique feature at this size. Fuel consumption at 6 knots is less than 10 liters. Available with Volvo, Yanmar or Cummins engines. A new 2-bathroom layout is also available. Interior design by Marco Casali.

Available Propulsion

Diesel

2x Yanmar 8LV 370HP

740 hp

23 kts top speed · Shaft drive. 8 solar panels integrated in coachroof standard.

Diesel

2x Yanmar 6LY 440HP

880 hp

Higher performance variant · Shaft drive. 8 solar panels integrated in coachroof standard.

Hybrid

2x Yanmar 8LV 370HP + 6G H-Drive

740 hp

23 kts diesel / 7 kts electric. 2x electric motor/generators. 4x 11 kWh@56V lithium ion batteries (~20 nm range at 4.5 kts). 2x 14 kW generator power in diesel mode. Full parallel hybrid drive. Optional additional 11 kWh battery upgrade (max 3 units).

Gallery

Photo Gallery

Layout

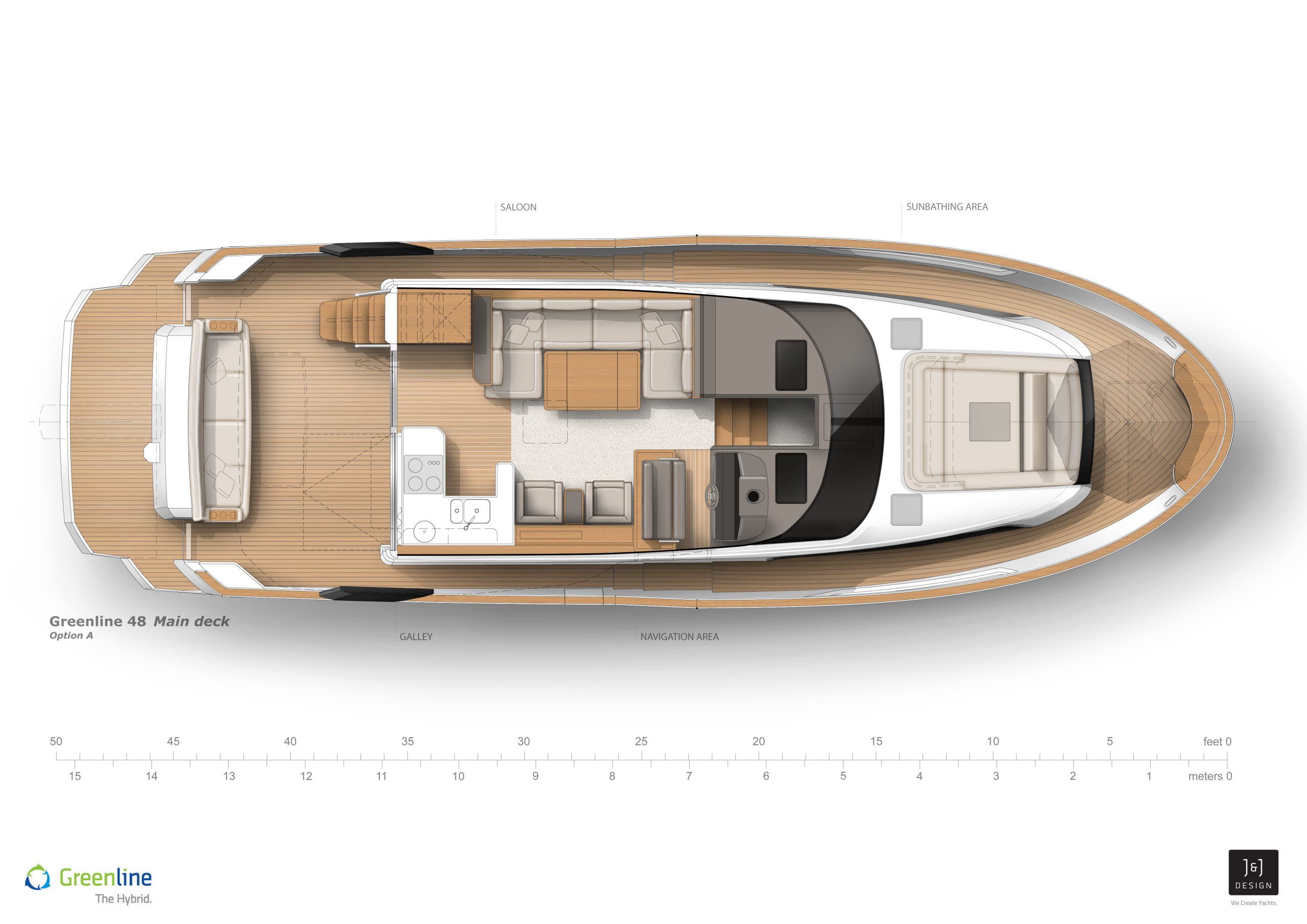

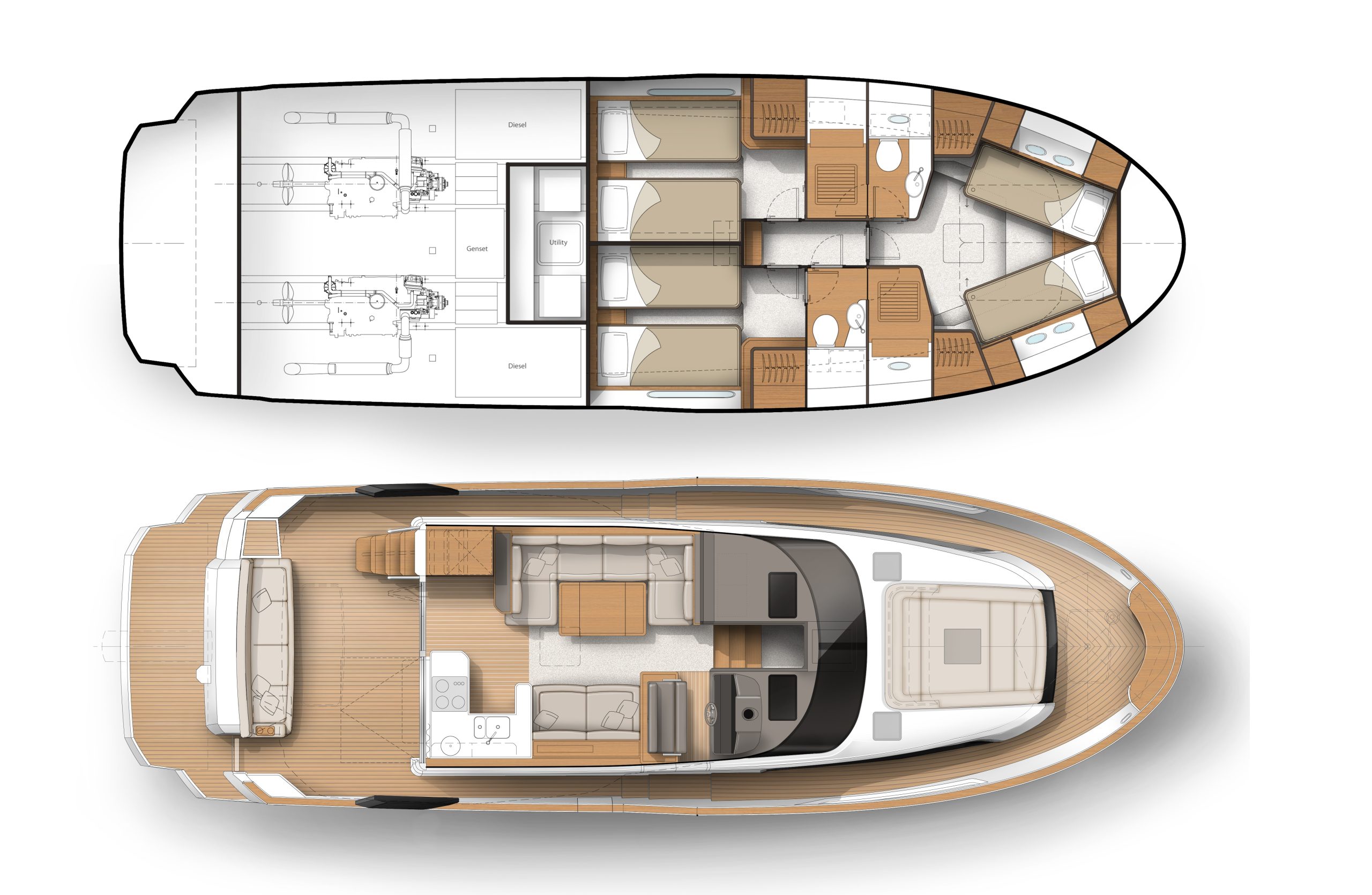

General Arrangements

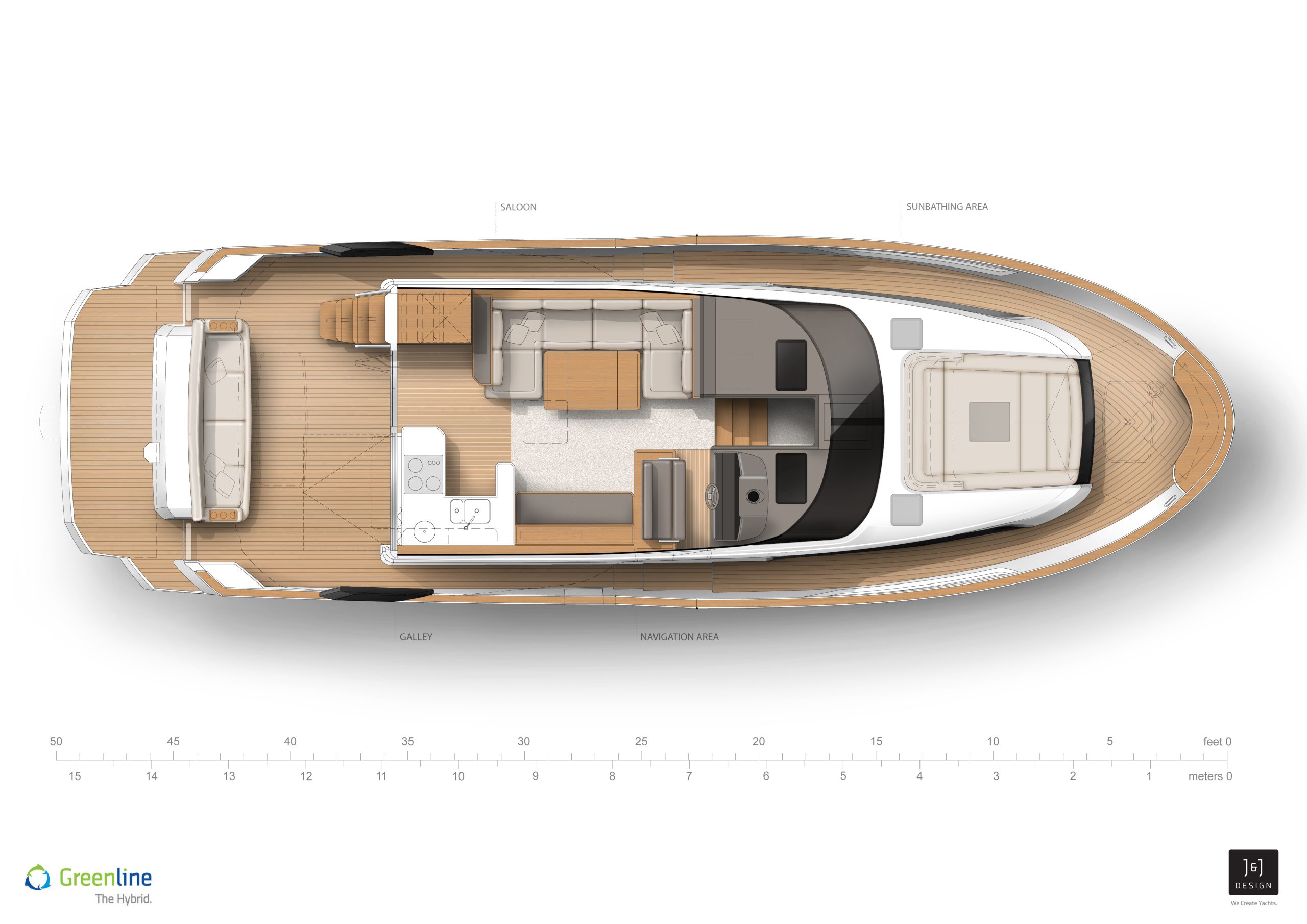

Main Deck - Standard

1 / 6

Configuration

Available Options

Forward deck sun bathing area — beige: sun mattress, lifting headrest, cup holders, bimini, forward settee, protective cover
Forward deck sun bathing area — grey: sun mattress, lifting headrest, cup holders, bimini, forward settee, protective cover
Cockpit table in natural teak with cup holders and protective cover
Flybridge table in natural teak with cup holders, foldable, protective cover
Flybridge bimini top — compact, between helm and windshield
Extra large flybridge bimini top — stainless steel support forward and aft, LED light
Protective covers for flybridge sun cushions
T-Top with stainless steel frame including 4 solar panels
Canvas cockpit exterior covers (camper cover)
Windshield and side windows exterior mesh cover
Electrically retractable sun shade in cockpit
Exterior upholstery upgrade — diamond stitch Silvertex material
Port side front opening window

3 cabin layout — 2 luxury washrooms with separate shower (replaces 3 en-suite bathrooms)
Master cabin island/comfort bed
4th cabin (skipper cabin) — replaces storage space on transom
Salon layout — sideboard with storage, starboard (Standard)

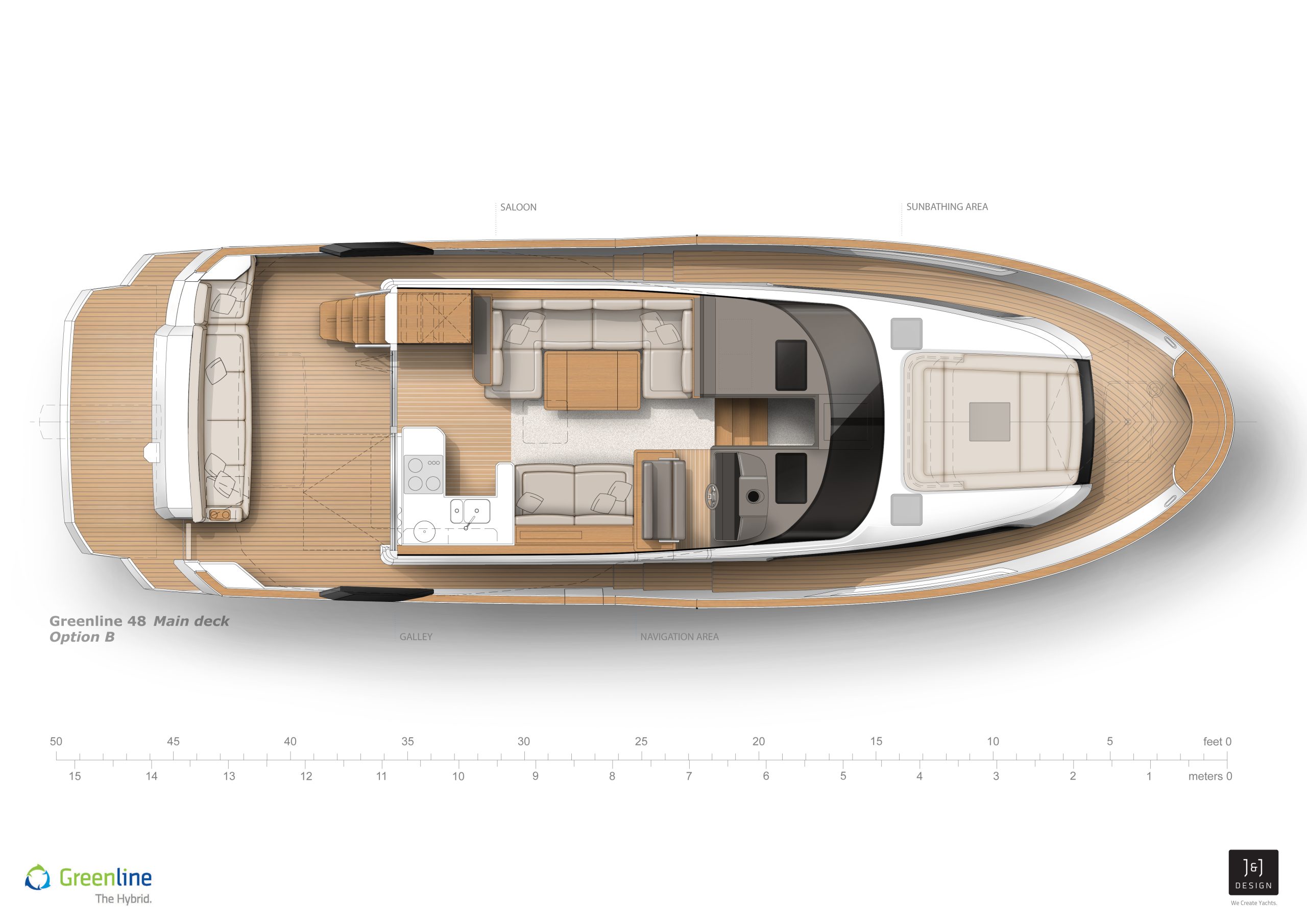

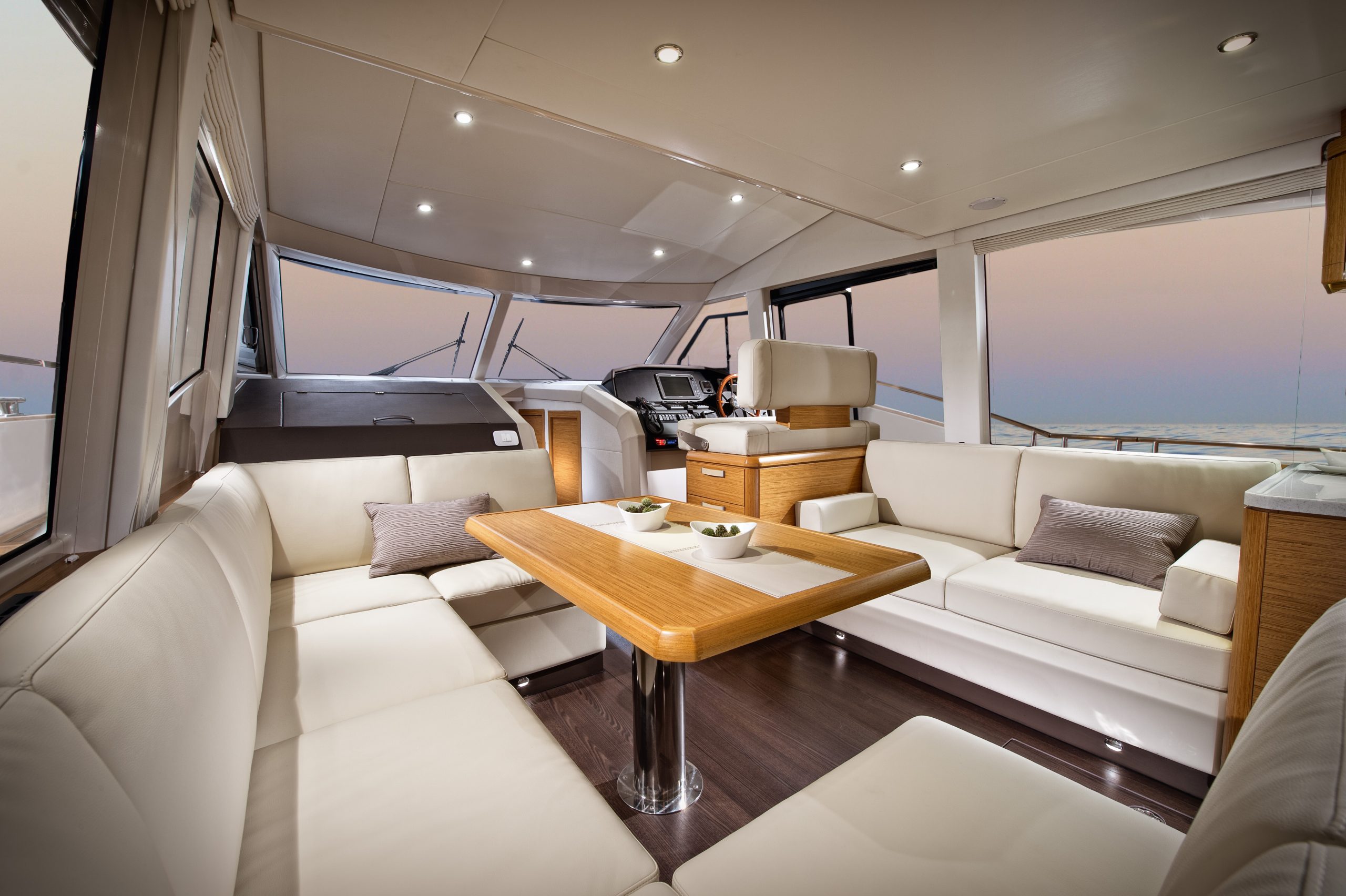

Salon layout — comfortable sofa
Salon layout — comfortable movable chairs
Salon table with folding flaps and cup holders in the middle
Salon table lowerable

Venetian wooden blinds — Golden Teak color
Venetian wooden blinds — White Oak color
Mirror package — 1.6m x 40cm mirror on each cabin door (Standard)
Indirect LED lighting — step lights on deck, salon, stairs and helm station

Golden Teak — white leather details, sand carpet, dark laminate floor (Standard)
Coffee Walnut — honey gold leather details, dark floor with stripes
Silver Oak — black leather details, dark laminate floor
Floor with stripes (add-on)

Rugana Cream fabric (Standard)
Rugana Grey fabric (Standard)
Sand Cream microfibre
Sand Blue microfibre
Mexico Cream artificial leather
Mexico Brown artificial leather
Emotion Beige leather
Emotion Brown leather

Greenline electricity package — 2x solar panels (~280W each), 7.68 kW LiFePO4 bank, 5000VA inverter, AGM starting batteries, Greenline App, waterproof cockpit/flybridge/storage sockets (Standard)
Electricity package upgrade (diesel drive only) — 12.68 kW battery bank
H-Drive battery upgrade — 1x additional 11 kWh battery (max 3 units)
Generator diesel approx. 11 kW / 60Hz
Stern thruster with 2x AGM batteries
Hydraulic lifting platform Tenderlift — 300 kg capacity
Upgrade to hydraulic lifting platform — 500 kg capacity
Dinghy support on platform pop-up chocks (max 150 kg)
Hydraulic gangway with remote control, 2.5 m
2x Capstan stern electric mooring windlass, port and starboard
Cablemaster shore power cable handling system, electric
Watermaker (desalinator) 50 L/h
Starlink pre-wiring — standard cable and plug
Starlink pre-wiring — Hi Performance cable and plug
2x Lumishore underwater lights on transom
Underwater light upgrade: 2 additional Lumishore lights
Indirect LED lighting — deck step lights, flybridge stairs, salon, helm station
Larger trim tabs (instead of standard)
Organized storage shelf in utility room in salon floor
Additional bilge pump
Engine room gas fire extinguisher system (replaces standard)
Fresh water package (heat exchanger and zincs)

Navigation package Basic — SIMRAD NSO evo3S 16" single on lower helm + NSS evo3S 12" on flybridge, Autopilot AP44 VRF, DST810 transducer, digital switching 16 fuses
Navigation package Premium — SIMRAD NSO evo3S 2x16" dual on lower helm + NSS 12" on flybridge, Autopilot AP44 VRF, DST810, HALO20+ radar, RS100-B VHF/AIS with flybridge handset
SIMRAD HALO20+ radar (doppler, up to 36 nm)
WR10 autopilot remote control
SIMRAD RS100-B VHF with integrated AIS
Airmar SS60 fishfinder transducer (replaces DST810)
Back-up video camera
4 cameras connected to plotter (bow, 2x aft, engine room)
C-Map North America charts
Greenline App control system (Standard)

Entertainment package — 40" sliding TV in salon, 22" TV in owner's cabin, Glomex TV antenna
Satellite TV
Audio package — salon and cockpit: Fusion Apollo system, cockpit and salon speakers
Audio package — master cabin: Fusion SRX400, 2 full-range speakers
Audio package — flybridge: Fusion SRX400, 2 waterproof speakers

Reverse cycle air conditioning — 39,000 BTU, 3 units, 110V
Tropical reverse cycle air conditioning — 46,000 BTU, 4 units, 110V
Upgrade to 10,000VA inverter (recommended for tropical A/C)
Chiller system — 70,000 BTU
Diesel heating system — 2 units (outlets in each cabin, head and salon)
Gyroscopic stabilizer (Quick)
Mosquito nets set for lower deck

Aft galley on transom — electric grill, sink with mixing tap
Flybridge galley — refrigerator, electric grill, sink with mixing tap, protective cover
Ice maker beside fridge or on flybridge
Washer/dryer ventless 7 kg, 110V in storage room
Washer/dryer ventless 7 kg, 110V in starboard guest cabin (with furniture and plumbing modifications)
Luxury dishwasher Fisher & Paykel, 110V
Luxury oven Bosch, 110V with microwave function (not compatible with microwave)
Central black water tank 400 L with diaphragm pump, seacock and macerator
Grey water tank 315 L with discharge pump and seacock
Docking pack (6 fenders, 4 mooring lines)
City water connection (Standard)
Chain and anchor wash-down (Standard)
