Specifications
Full Technical Details
| Length Overall | 60 ft / 18.29 m |
| Beam | 27 ft 6 in / 8.38 m |
| Draft | 4 ft 3 in / 1.3 m |
| Air Draft | Confirm with Revolution Marine |
| Displacement | 92,594 lb / 42,000 kg |
| Hull Type | Power Catamaran — Full Electric |
| Hull Material | GRP vacuum infusion, PVC sandwich core |
| CE Category | Category A12 / B40 |
| Cabins | 3 or 4 guest + 2 crew |
| Heads | En-suite each cabin + day head |
| Max Persons | 10 guests + 3 crew |
| Fuel Capacity | 1,321 US gal / 5,000 L (Revolution Edition) |
| Water Capacity | 211 US gal / 800 L |
| Holding Tank | 2 x 100 US gal / 2 x 380 L |
| Cruise Speed | 7-8 kts |
| Max Speed | 12 kts |
| Range | 800 nm (range extender) |
| Electric Range | 800 nm at 7-8 kts cruise |
| Battery Capacity | 282.6 kWh LFP (drive battery) |
| Solar Output | 8+ kWp |
Overview

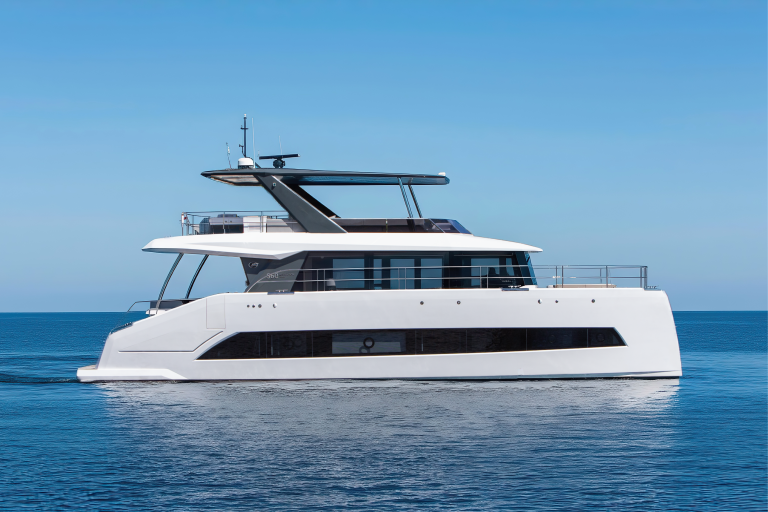

S60e Revolution Edition
The S60e Revolution Edition takes the proven S60 platform into full electric propulsion. ePropulsion 150 kW motors, 282.6 kWh LFP drive battery, and dual Kohler 45 kW generators as range extenders deliver 800 nautical miles of range at 7-8 knots cruise. More than 8 kWp solar supports hotel load. Hull #12 arrives Fort Lauderdale end of year 2026. Available for order now with 2027 delivery slots open for full configuration control.
Available Propulsion
Full Electric
Epropulsion 2 x 150 kW electric motors
402 hp · Direct shaft
Standard - 282.6 kWh LFP drive battery
Diesel
2 x Kohler 45 kW generators (range extenders)
Generator / range extender
Extends range to 800 nm - not propulsion
Layout

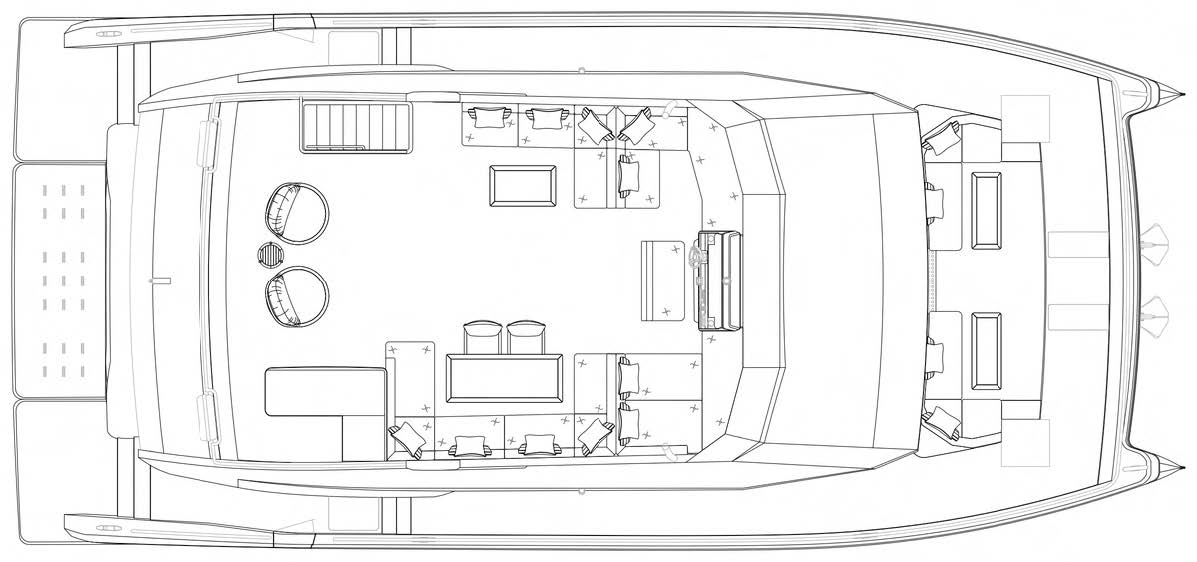

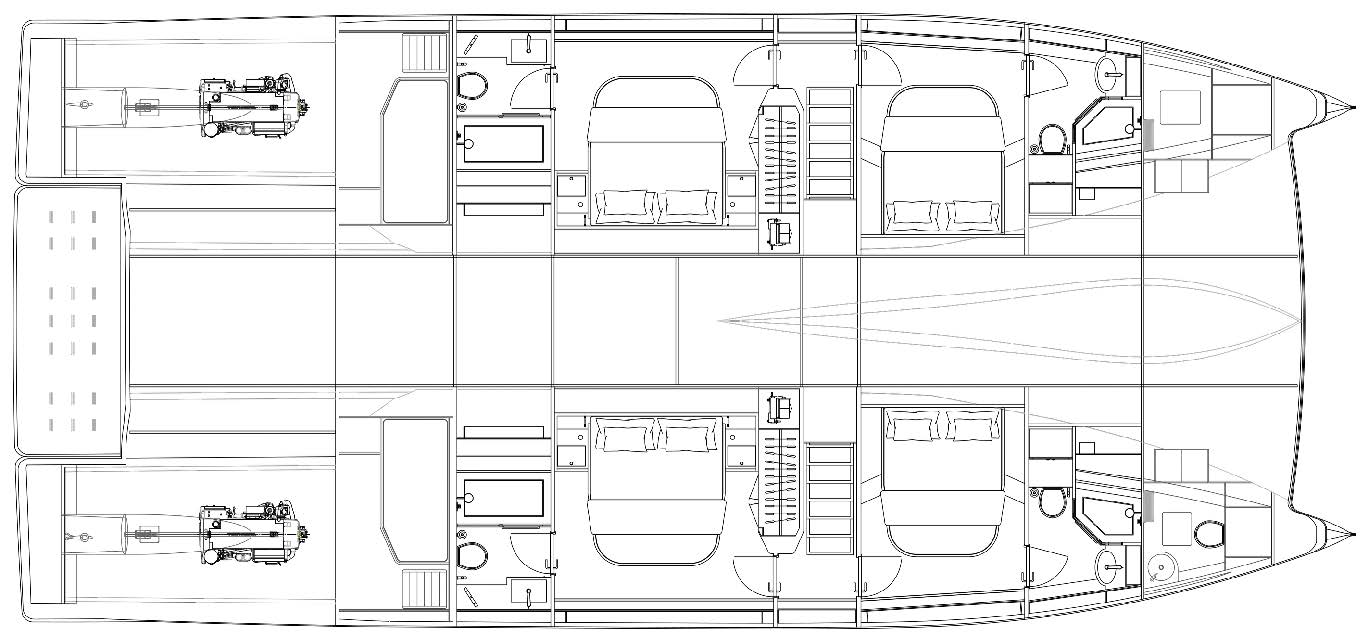

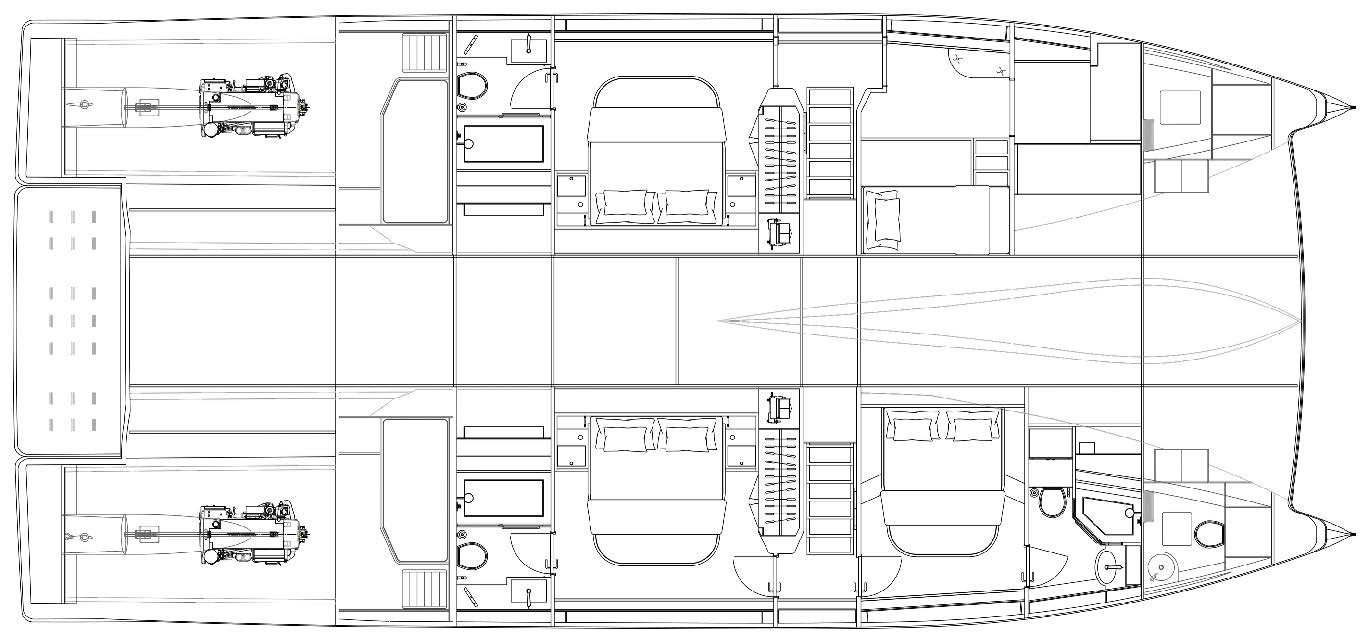

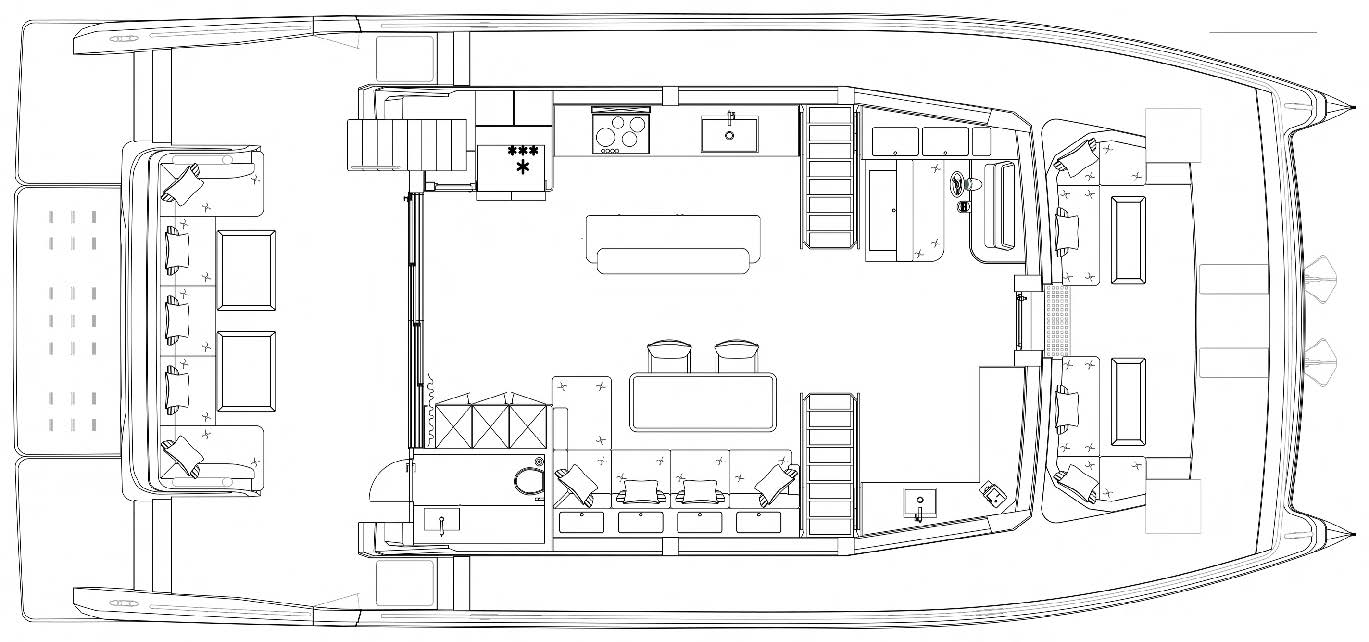

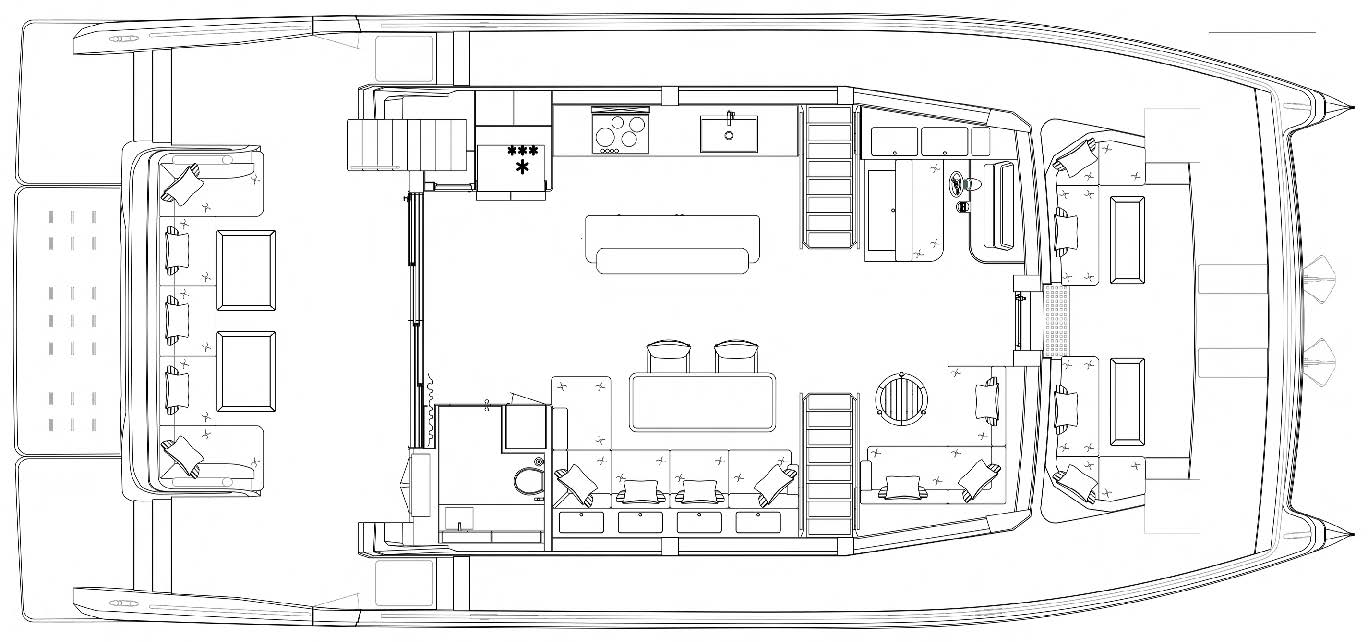

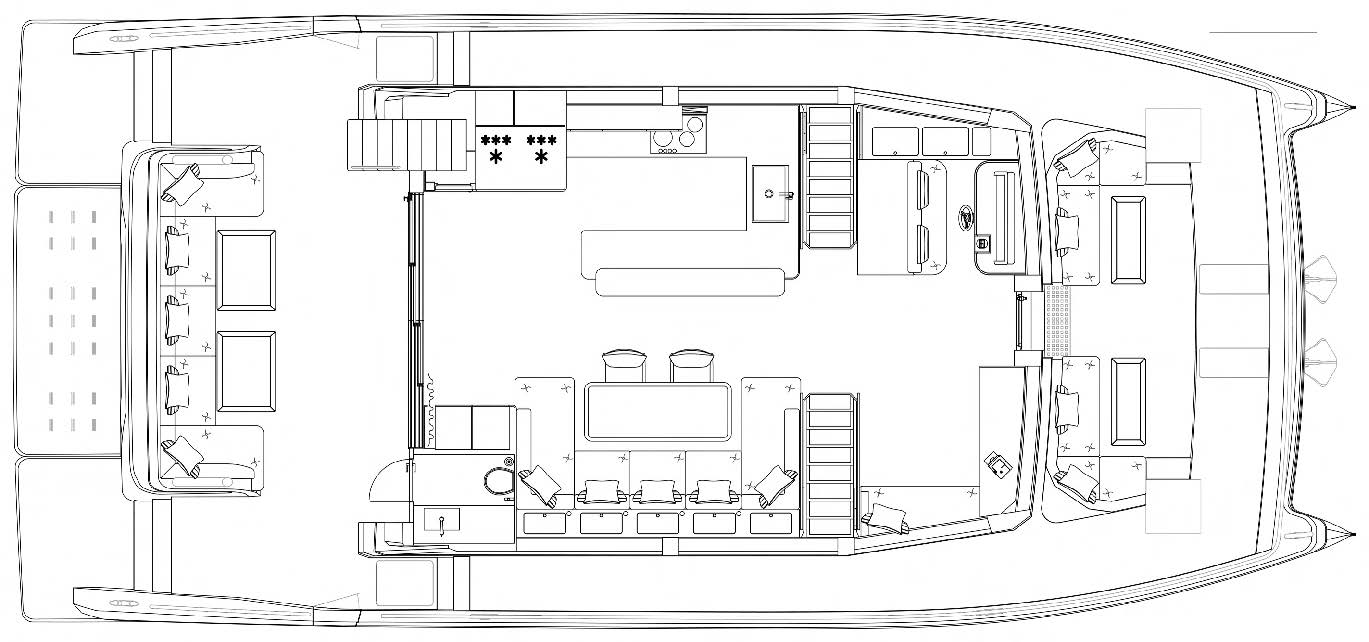

General Arrangements
1 / 6
